Mini Power Relays - The are a lovely size quality relay at a good price.
Available in the following coil voltages:
3V, 6V, 12V DC Coils - 10A 250v/125v
SIngle Pole Double Throw
What is the Single Pole Double Throw (SPDT) relay?
The Single Pole Double Throw SPDT relay is quite useful in certain applications because of its internal configuration. It has one common terminal and 2 contacts in 2 different configurations: one can be Normally Closed and the other one is opened or it can be Normally Open and the other one closed.So basically you can see the SPDT relay as a way of switching between 2 circuits: when there is no voltage applied to the coil one circuit “receives” current, the other one doesn’t and when the coil gets energized the opposite is happening.
Coil voltages available: 3 Volt DC, 6 Volt DC, 12 Volt DC,
Coil resistance : 3 Volt - 25 Ohm, 6 volt - 100 Ohm, 12 volt - 400 Ohm
Contacts rated: 10 amps 250Vac / 30V DC
Please select required voltage from the drop down list.

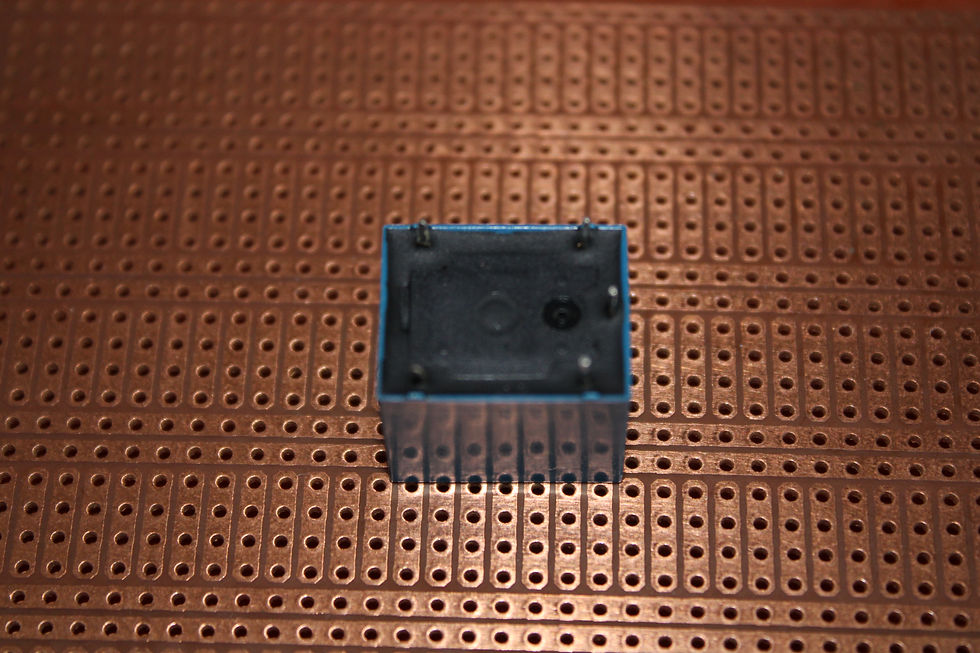

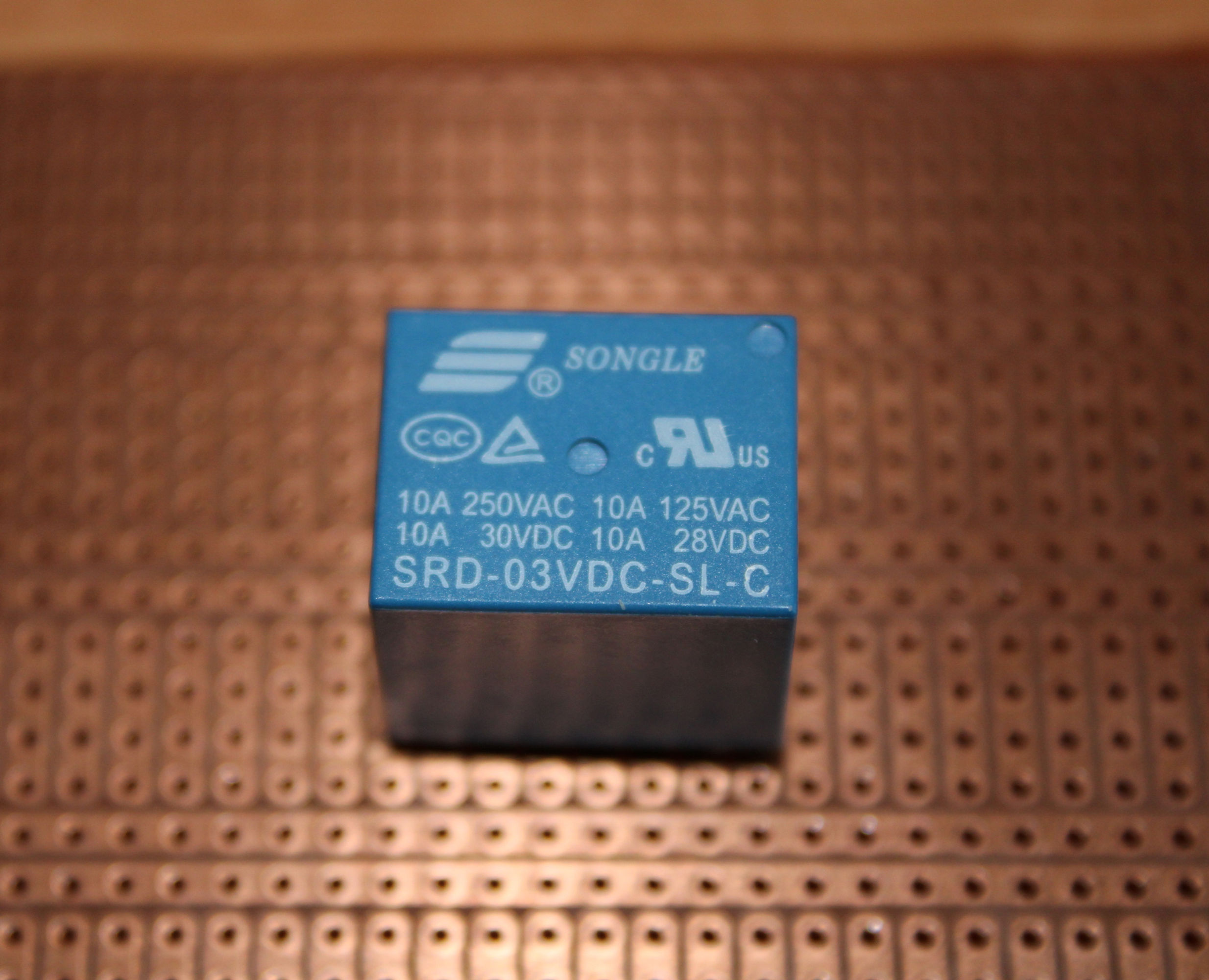

Songle - mini power relays SPDT 5-pins PCB mount DC coils
