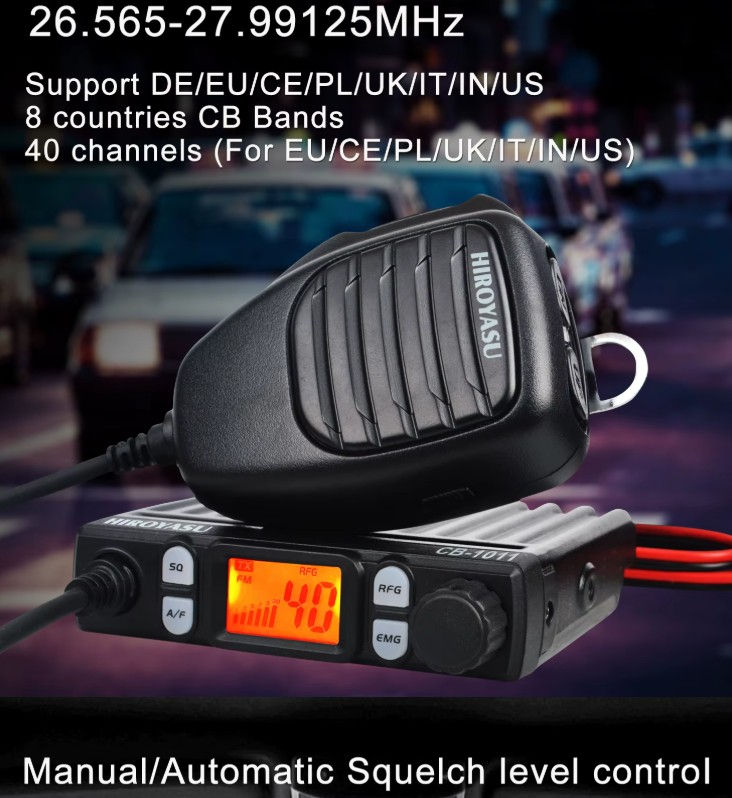

HIROYASU CB-1011 CB Compact mobile tranceiver 27MHz

40Ch FM/AM

8W Mini wide-band selectable so lots of interesting coverage
26.565-27.99125MHz
Mobile Radio for EU PL DE CE UK IN US IT Countries

Features:
1. Freq Range： 26.565-27.99125MHz
2. Support DE/EU/CE/PL/UK/IT/IN/US 8 countries CB Bands
3. AM/FM Two Modes selection
4. 40 channels for EU/CE/PL/UK/IT/IN/US,80 channels for DE
5. PH(8W)/PL(4W) HIGH/LOW power select
6. Manual /Automatic Squelch level control
7. RF Gain Control(RFG)
8. CH9/CH19 Emergency Channel (EMG)
9. Channel Scan
10. Keypad Lock

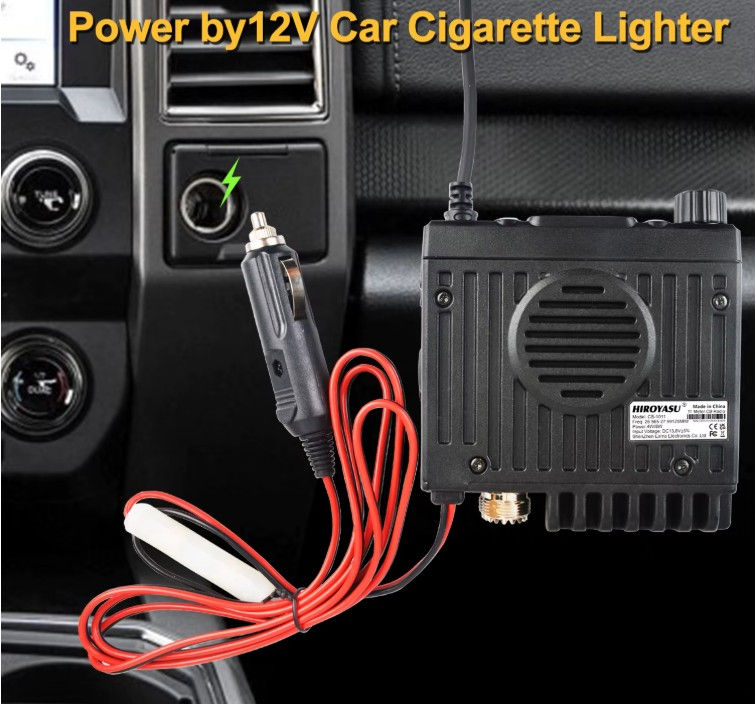

11. Power by 12V Car Cigarette Lighter
12. Factory Default Reset
13. Palm Size, light Weight


Specifications:
General
Modulation Mode
AM/FM
Frequency Range
26.565-27.99125MHz
Frequency Tolerance
±5.0ppm
Input Voltage
13.8V±5%
Dimensions
109*104*25mm
Weight
421g
Frequency Control
PLL Synthesizer
Operating Temperature Range
-20°c~+50°c
Current Drain
Transmit
2A Max.
Receiver
Squelched 0.3A
Vol Max.
0.8A
Antenna Connector
UHF,SO239
Transmitter
Power Output
8 Watts FM/AM
Transmission interference
Inferior to 4nW(-54dBm)
Frequency Response
300-3000Hz
Modulated Signal Distortion
Inferior to 5%
Output Impedance
50 ohms
Receiver
Sensitivity
Less than 1uV for 10dB (S+N)/N
Image Rejection
70dB
Adjacent Channel Rejection
60dB
IF Frequency
1st10.695MHz
2nd 455KHz
Automatic Gain Control (AGC)
Less than 10dB change in audio
Output for inputs from 10 to 50000uV
Squelch
Less than 1uV
Audio Output Power
1 Watts
Frequency Response
300-3000Hz
Package Contains:
1×Hiroyasu CB-1011 CB Radio bodywith Microphone speaker and DC 12V Input cigarette Power Cable
1× Mounting Bracket
1× Microphone Hanger
2× Adjusting Screws
4× Screws for bracket
2× Pads for bracket
2× Screws
1×Spare Fuse
1× User Manual
