ANENG SZ308 Mini Digital Multimeter AC DC Voltage Current Resistance Meter

Features: 1.  Multi function ideal for electronic component repair and testing 2.AC & DC voltage measurement 3. hFE transistor measurement: Measurement of the function dial to hFE transistor gear, make sure the transistor is PNP or NPN type - test conditions 10uA Vce 3v

4. Diode tester - useful for testing LEDs too

5. Resistance meter

6. Central range switch - nice positive switching to the different range / functions

7.Designed in accordance with IEC-1010

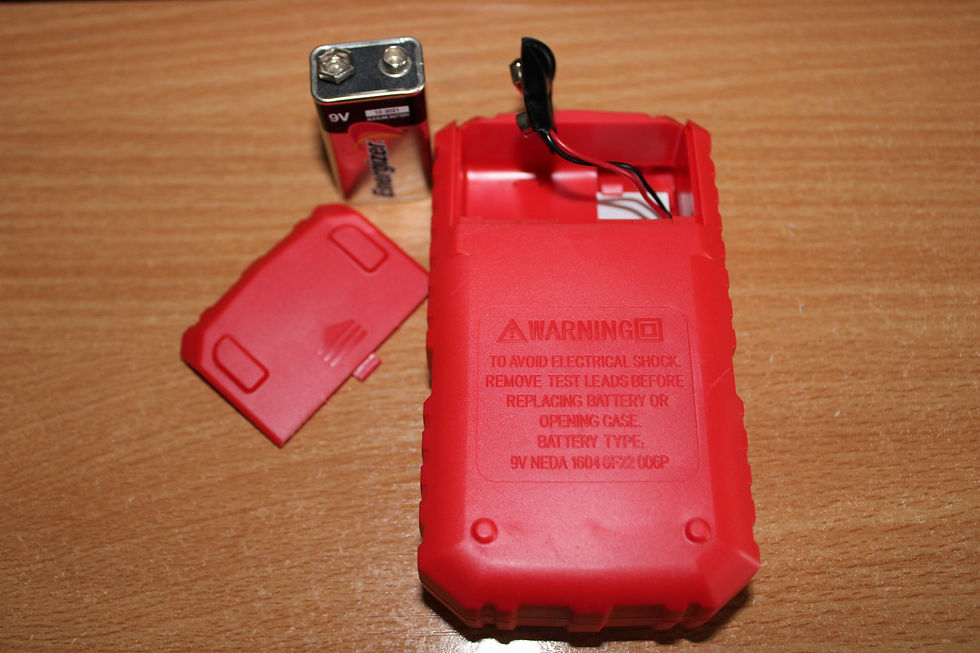

9V battery life: Install the battery in the rear compartment - arrow guide upward push out the battery cover, using 9V battery pay attention to correspond to the positive and negative poles

THe multi-meter is light and of small size - handy portable unit or a handy spare in the toolbox or car.

Parameters:

Case Colour: Red

Maximum display: 1999 AC voltage: 0V-750V, resolution: 0.1-1V, accuracy: ± (1.0% reading + 15 words) DC voltage: 200mV-1000V, resolution: 0.1mV-1V, accuracy: ± (1.0% reading + 15 words) DC current: 2mA-10A, resolution: 0.01mA-0.01A, accuracy: ± (1.5% reading + 5 words) Resistance: 0Ω-2000kΩ, Resolution: 0.1Ω-1kΩ, Accuracy: ± (1.2% reading + 5 words) Triode: √ Diode: √ Buzzer: √ Square wave measurement: √ Low battery indication: √ Material: ABS Battery: 9V battery (shipped without battery) Total length of meter pen: 70cm / 27.5 inch

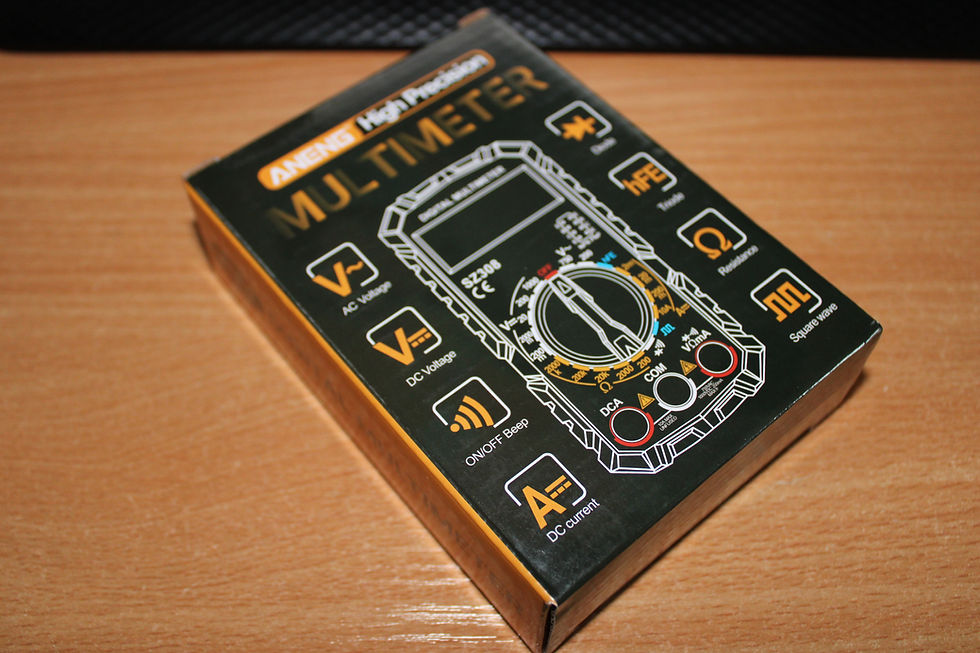

Package Includes: Multimeter *1 Instruction manual *1 Test meter leads Red & Black set  *1

Could be stripped down fairly easily to make a useful multifinction display or panel meter.
